New Jersey
New Jersey
One of two-faced retro-reflectors for vertical signalling.
Mainly used on New-Jersey barriers.
Available in different base structure and reflector colours, according to the needs of the clients.
TECHNICAL CHARACTERISTICS
Reflector surface: 77×117 mm
Base surface: 87×92 mm
Coefficient of Retro-reflection: 950 Ra (cd/lux/m2)
Fixing on barrier, wall, road surface, … with 2 or 4 screws

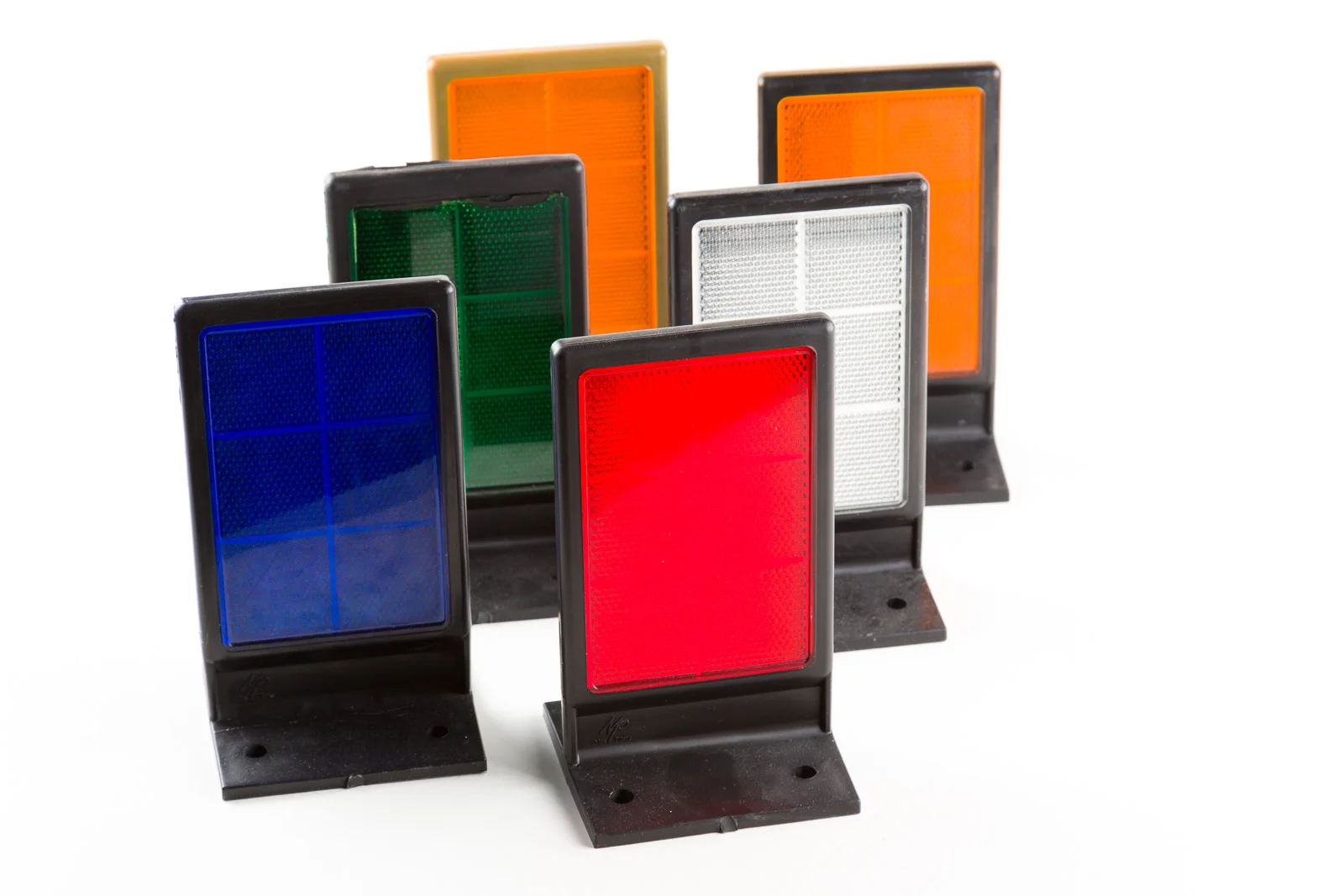

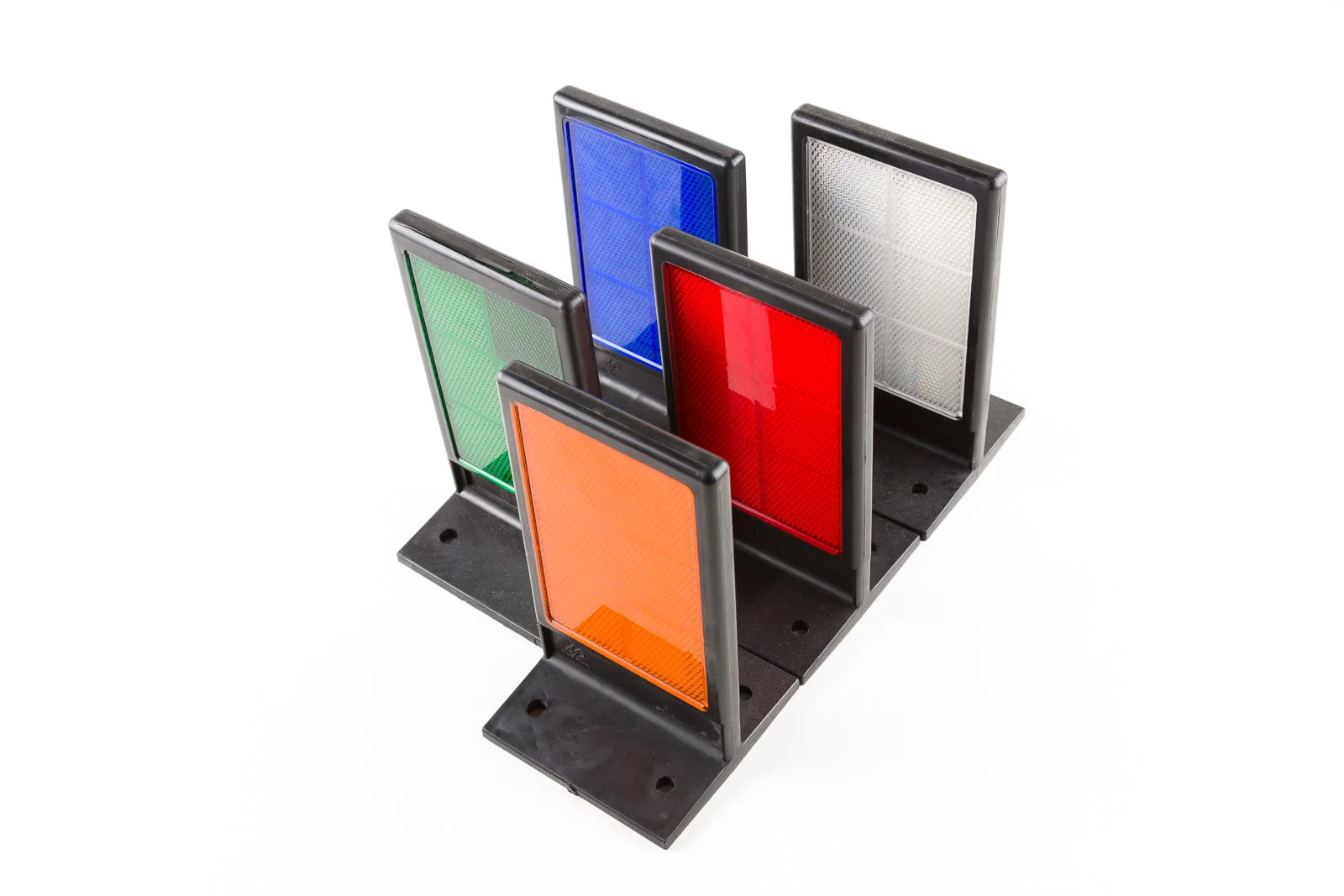

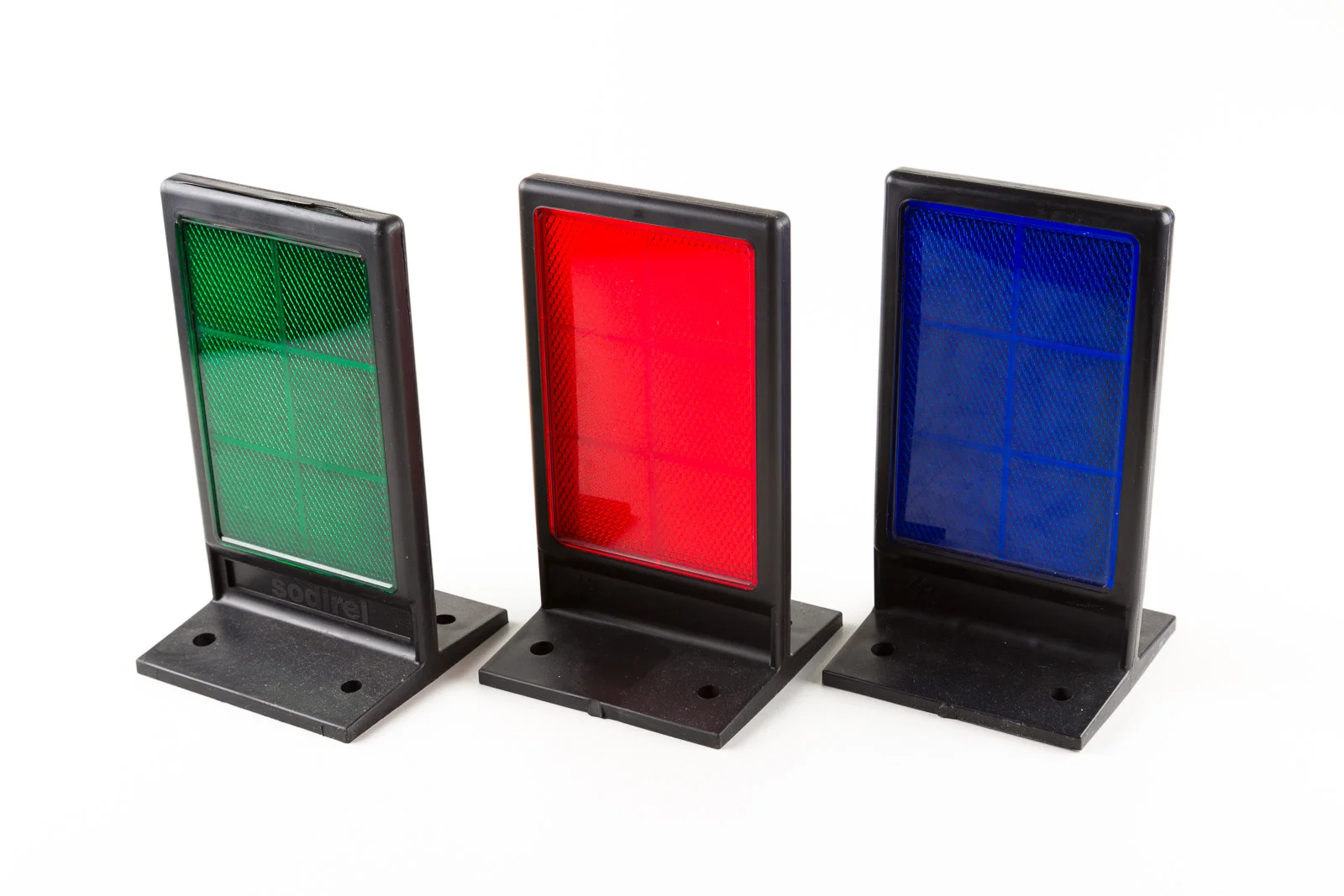

Colours for the reflecting surface: White, orange, red, blue and green

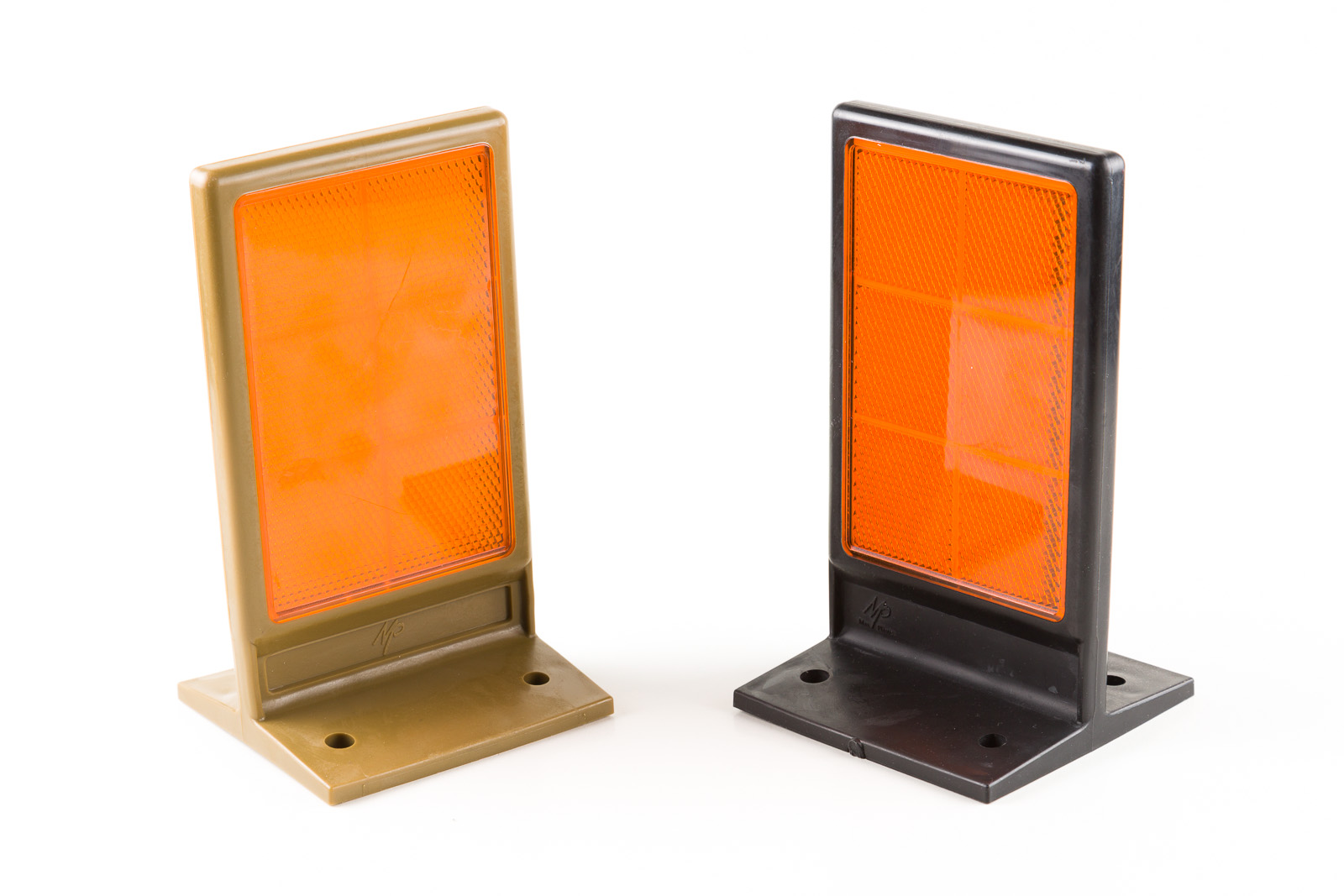

Colours for the fixing surface: Black, brown and green
Customizable logo
Tightness between the base and the reflecting plates
UV ray-resistant
Resistant to adverse climatic conditions
Flexible base. Adaptable to curved surfaces
OTHER CHARACTERISTICS
Urban environments

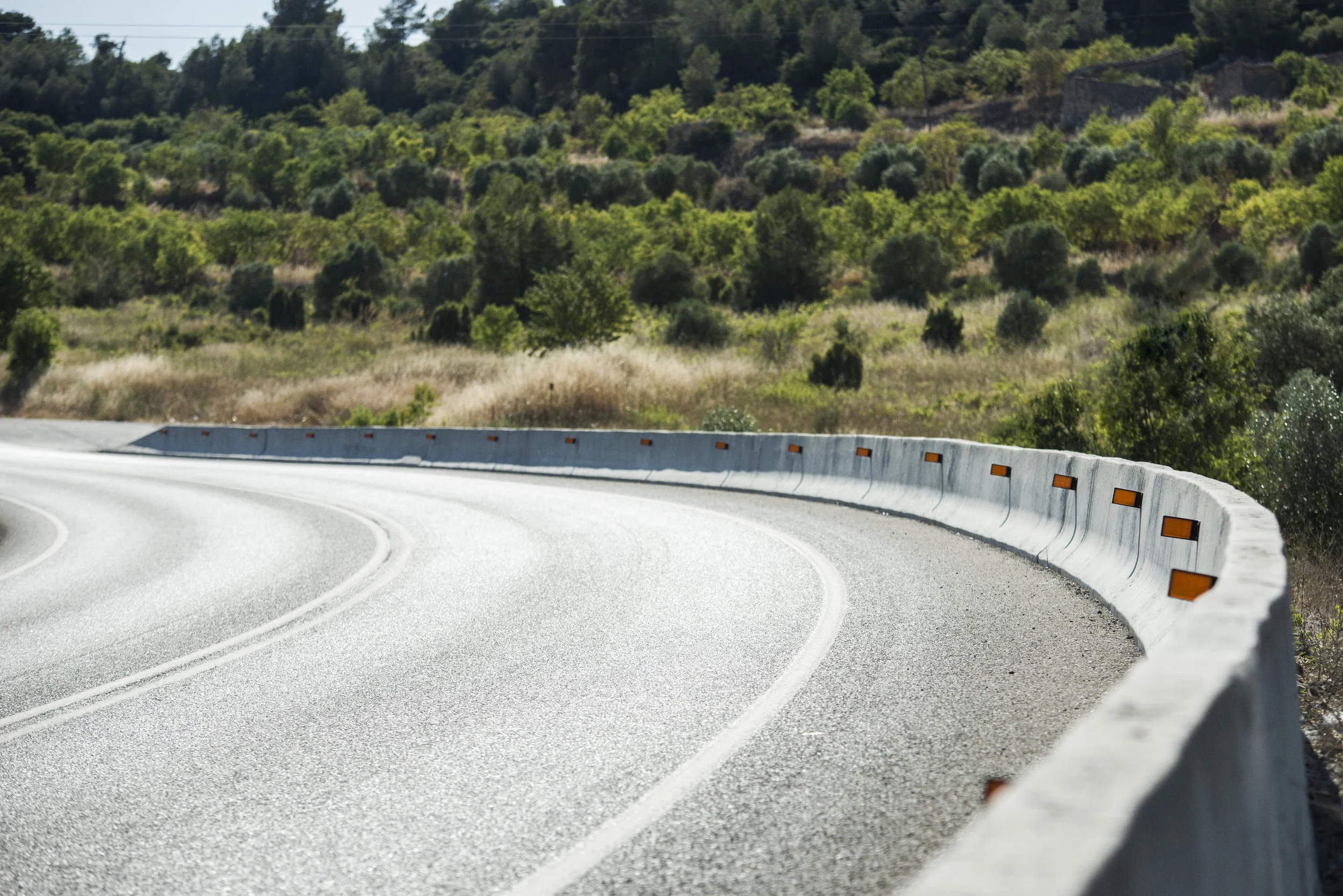

On traffic direction division barriers (concrete New Jersey barrier, metallic barriers, …)
On tarmac for slip road signaling
Toll entrance signalling
Side barriersInside walls of parking lots
Etc
Rural environments
Footpath signalling, on side walls or wooden fences
Easy assembly
With 2 or 4 screws, or riveted directly through the rubber base
Outdoor conditions and corrosion-resistant
Water-tightness in the filtering of water between the components
Rust-free thanks to the absence of metallic riveting
Specially adapted to cold and salty atmospheres
Impact resistant
Good response to impact due to the base’s flexibility
